Keiko 4GX

General specifications

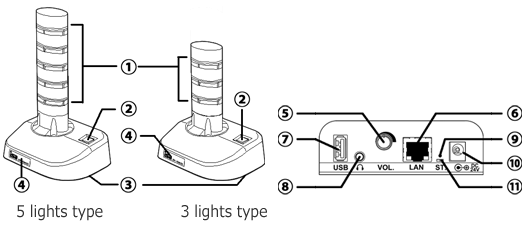

Body appearance

① strong illuminating LED lights
② stop button (and power indicator)
③ speaker unit
④ grade label (wine red)
⑤ volume control for speaker output
⑥ wired LAN (gigabit)
⑦ USB port forWi-Fi module only
⑧ headphone output
⑨ reset button
⑩ power connector for DC24V
⑪ status light (LED)
LED color (5 light type) red, yellow, blue, green, white
(3 light type) red, yellow, green
Model No.DN-1500GX - N

The meaning of sign N : LAN type:Wired(=N)
:Light Type
:Lens Color
:Body Color

5 light type
5 layer
(=5L)
Lens Color(="C"or"S")
Color(=C) Skeleton(=S)
Body Color(="B"or"W")
Dark gray(=B)
Light gray(=W)
Model No. LAN type:Wired(=N)

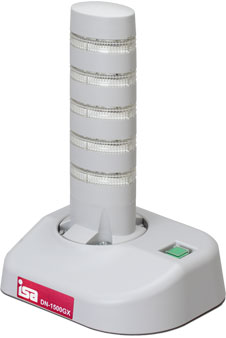

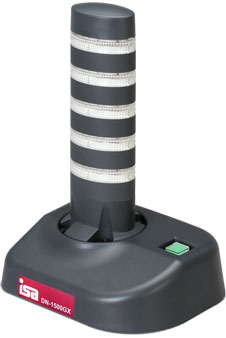

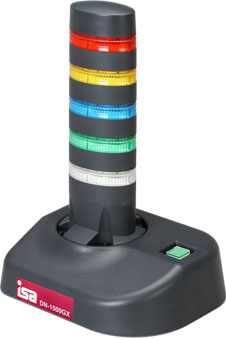

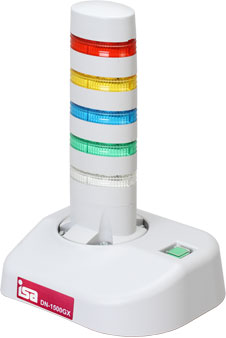

DN-1500GX-N5LCB DN-1500GX-N5LCW DN-1500GX-N5LSB DN-1500GX-N5LSW
Model dimension(inches) 6.3W x 4.92D x 10.63H (part of lights : 2.36Φ x 1.57Φ x 8.66H)
Weight (lb.) *AC adapter not included.
3 light type
3 layer
(=3L)
Lens Color(="C"or"S")
Color(=C) Skeleton(=S)
Body Color(="B"or"W")
Dark gray(=B)
Light gray(=W)
Model No. LAN type:Wired(=N)
DN-1500GX-N3LCB DN-1500GX-N3LCW DN-1500GX-N3LSB DN-1500GX-N3LSW
Model dimension(in) 6.3W x 4.92D x 8.27H (part of lights : 2.36Φ x 1.57Φ x 6.3H)
Weight (lb.) *AC adapter not included.
Other specifications
MPU 32bit 1.2GHz ARM architecture
Lights lights on, off, flashing (30, 60 times / m)
Audio output 1.5W built-in speaker (0-88dB)
1ch,3.5 mmΦ audio mini jack(Stereo,16Ω,46mW)
Audio file maximum 20 MPEG3 files / backup / playback restore(up to 10MB)
Buzzer 2 type of sound(P-,P-,P-,35 times / m, PPPP.., 700 times / m) 3.3kHz
Wired LAN Gigabit Ethernet(auto-negotiation 10BASE-T, 100BASE-TX, the 1000BASE-T)
LED indicator (link status, speed)
Wireless LAN compliant Wi-Fi, IEEE802.11 b / g / n
Security: Open System, WEP (64/128bit), WPA/WPA-2-PSK (TKIP / ASE)
DHCP support protocol
Both wireless LAN / wired: IP address, subnet mask, gateway address, DNS server address
USB USB 2.0(only for Wi-Fi optional module)
Security Cipher : AES, DES, 3DES
Authentication : SHA1, MD5
IP Network IPv6 / IPv4 dual stack
Supported Protocols ARP, HTTP, ICMP, RSH, NTP, SMTP, SNMP(v1 / v2c / v3), TCP/IP, UDP
Configuration system through web browser
Calendar / Clock capacitor backup
Alarm reset button turn off lights, buzzer, indicates power
operational conditions Temperature : 0 - 45 °C
Humidity : 20% - 85% RH(non-condensing)
Elevation : below 3,000 m
AC adapter body dedicated products
dimensions (mm): 46W x 34D x 25H
input voltage : 100 -240VAC , 50/60Hz
output voltage : 24VDC 0.5A
weight: approx. 1/4
cable length: approx. 1600mm
Power consumption max 10W(All 5lights, buzzer, wireless LAN, voice output)/ 4W (standby)
EMC FCC Part15 - ClassA
CISPR 22/EN55022 - ClassA
Environmental Standards RoHS Compliance
Warranty period 90 days after shipment
